Press and hold the button for 2 seconds or more to turn the Minirig Mini on
Open bluetooth settings on your phone. Turn Bluetooth ON, find “MINIRIG MINI” and select it to connect
Once connected play music
Plug the standard audio aux cable into the 3.5mm headphone socket of your phone or device
With the Minirig Mini turned off, plug the other end into either socket on the Minirig Mini. The top socket will set the gain (volume) to high and the bottom socket will set the gain to low.
Play music on your phone
You must remove the cable from the Minirig Mini before you can use Bluetooth mode
Plug the charging cable provided into any USB socket.
Plug the round barrel connector into the barrel socket of the Minirig Mini
The LED will start fading
When the Minirig Mini is ON, the colour of the LED will represent the battery level
PURPLE = 0-25%
BLUE = 25-50%
CYAN = 50-75%
GREEN=75-100%
When the Minirig is OFF, press the button (do not hold). The LED will light up to show the battery status
Turn the Minirig Mini on in Bluetooth mode
Turn the second Minirig or subwoofer on in aux mode by inserting a 3.5mm aux cable
Plug the other end into either socket of the Bluetooth Minirig Mini
Use the button to change gain so they are both playing in HIGH or LOW gain
Turn on both Minirig Minis in Bluetooth mode
Start playing some music through one of the Minirig Minis
Press the button on that Minirig Mini TWICE (two short presses) to start the pairing process. The LED will flash WHITE and RED
After around 20-60 seconds they will connect and music will play through both speakers. You will hear a happy tone and the Minirig Mini will stop flashing.

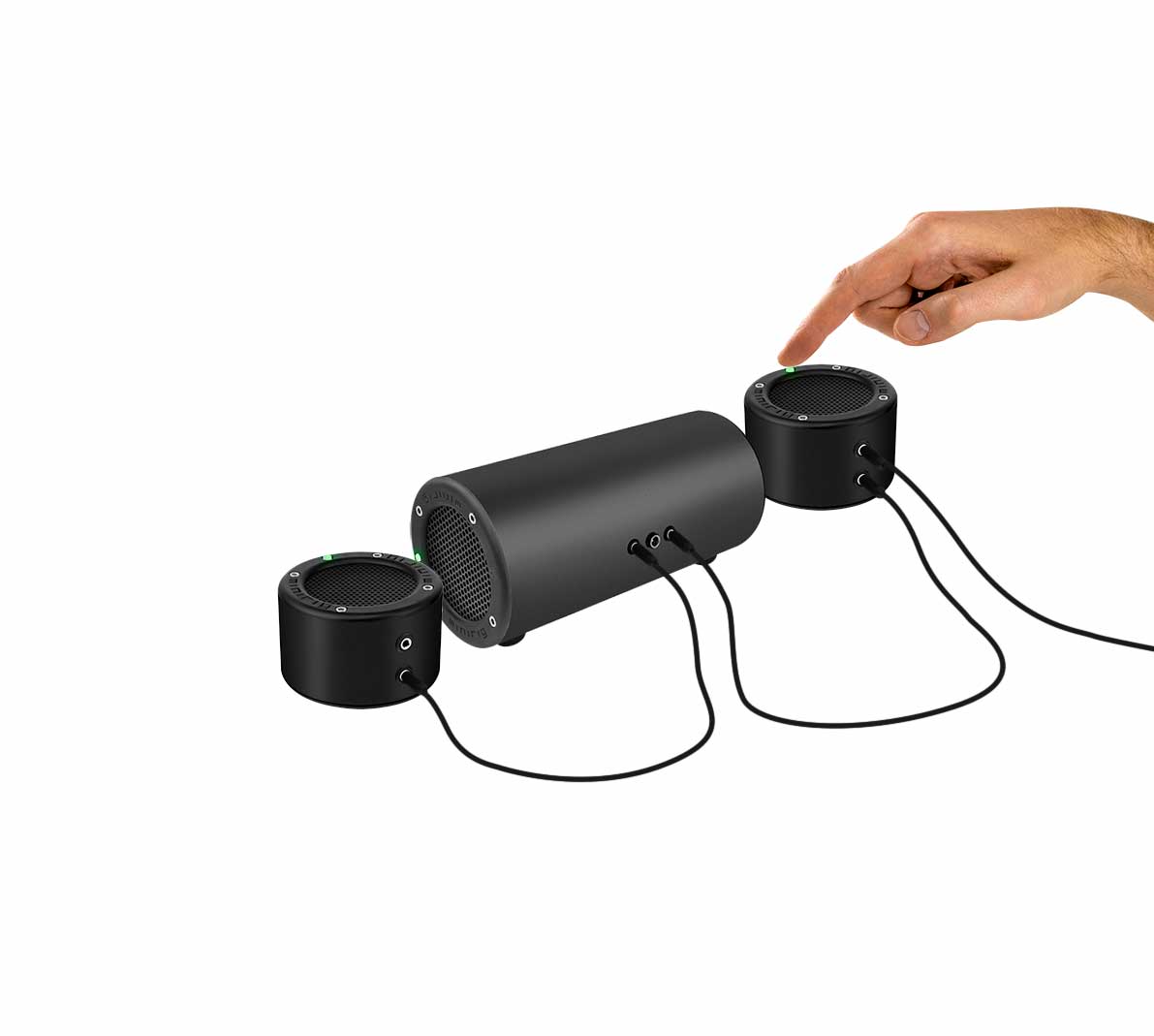

You may add a subwoofer or Minirig Mini using an aux cable
Plug your music device into the first Minirig Mini using an aux cable and play music
Link out from the first Minirig Mini to the next Minirig Mini or subwoofer using 3.5mm aux cable
Continue to add as many speakers as you like
Toggle the gain on the Minirig Minis and subwoofer so they all play at the same volume
To setup the Minirig Minis to play in stereo, press the button on each speaker TWICE (two short presses, do not press and hold).
They will configure as left and right according to the number of aux cables inserted.
Two cables = left
One cable = right
Plug your music device into the first Minirig Mini using an aux cable and play music
Link out from the first Minirig Mini to the next Minirig Mini or subwoofer using 3.5mm aux cable
Continue to add as many speakers as you like
Toggle the gain on the Minirig Minis and subwoofer so they all play at the same volume
Turn on the Minirig in Bluetooth mode and connect your iOS or Android device
Visit the App Store or Google Play and search for “Minirig”
Find the Minirig app and install it
When it’s installed, open the app
Follow the on-screen pop-ups to find your way around the app
Turn on the Minirig in Bluetooth mode and connect your iOS or Android device
Visit Google Play and search for “Minirig updater”
Find the Minirig updater app and install it
When it’s installed, open the app
Follow the on-screen pop-ups to update your Minirig Mini
For iOS devices, the updater is embedded into the Minirig app and will open automatically when an update becomes available.
